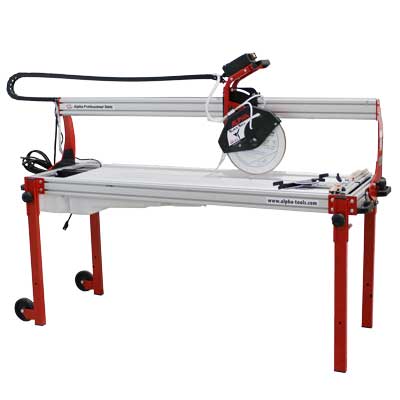

Alpha® introduces the black belt rail saw which is a professional quality rail saw, ideal for cutting ceramics, porcelain, glass panel and other materials. It comes with many features such as a rugged aluminum table chassis for a stable operation, and a maintenance-free magnetic-induction water pump that delivers ample water to both sides of blade. This extremely reliable saw is equipped with a 115v-60hz, 9.6amp, 2hp (1.5kw), 2,800 RPM motor with direct drive shaft and accepts 10” & 12” blades.
The Alpha Black Belt Rail Saw is a professional-grade 115 V wet rail saw engineered for cutting large-format ceramic, porcelain, and glass panels as well as other hard materials. Featuring a rigid aluminum chassis, a high-torque direct-drive motor, and a maintenance-free water delivery system, it delivers precise, smooth long cuts and angled cuts while effectively managing dust and blade cooling.
Key Features
- Professional Quality Rail Saw, Ideal For Cutting Ceramics, Porcelain, Glass Panel And Other Materials
- Rugged Aluminum Table Chassis For Stable Operation With A Long Life
- Equipped With A 115V-60HZ, 9.6AMP, 2HP (1.5KW), 2,800 RPM Motor With Direct Drive Shaft
- Supports 10” & 12” Blades With 1” And 60mm Arbors
- It Can Cut Up To 2-1/4” Deep In A Single Pass, 3-3/8” With Step Cut
- The Cutting Head’s Mechanical Vertical Tilting System Allows For Cutting Depth Adjustment
- Stainless Steel Head Rails And Adjustable Armored Ball Bearings For Smooth And Precision Movement
- Cutting System’s Side Tilt Capability Eases Up To 45 Degree Cut (Ideal For Miter Cuts)
- Extremely Reliable, Maintenance Free Magnetic-Induction Water Pump Delivers Ample Water To Both Sides Of Blade
- Retractable Legs Include A Fall-Protection Device
- Table Handles And Heavy-Duty Wheels Make For Easy Transportation
- Front, Back And Bilateral Blade Guards Minimize Exposure Of Blade For Safety And Reduces Water Splash
- Rip Cut Up To 51″ (130cm) and Diagonal Cut Up To 33″ (84cm)
- Maximum Load 400lbs (180kgs)
Specifications
| Specification | Details |
|---|---|
| Model / SKU | BBS-012 |
| Voltage | 115 V AC, 60 Hz |
| Amperage | 9.6 A |
| Power | 2 HP (1.5 kW) |
| Max. RPM | ~2 800 RPM |
| Blade Diameter | 10″ / 12″ (250 mm / 300 mm) |
| Arbor Size | 1″ (25.4 mm) & 60 mm |
| Max. Cutting Depth | ~2-1/4″ single pass; ~3-3/8″ with step cut |
| Max. Cutting Length | Straight: up to 51″ (130 cm); Diagonal: up to 33″ (84 cm) |
| Weight | ~128 lbs (≈58 kg) |
| Cord Length | ~16.4 ft (5 m) |
| Plug Type | 16 A / 120 V ~ 2P+T |
| Warranty | 1-year tool warranty |
Ideal For
Cutting large stone, porcelain, ceramic, and glass panels with straight or angled precision, making it a solid choice for stone fabricators, tile installers, and contractors requiring a stationary wet cutting solution.
