A heavy‑duty 230 V wet rail saw designed for tile, stone, pavers, and large format materials. Equipped with a rugged aluminum table, a 3 HP (2.2 kW) direct‑drive motor, and water‑cooling system, this saw delivers precise wet cutting with excellent stability — ideal for stone fabricators, tile installers, and hardscape contractors

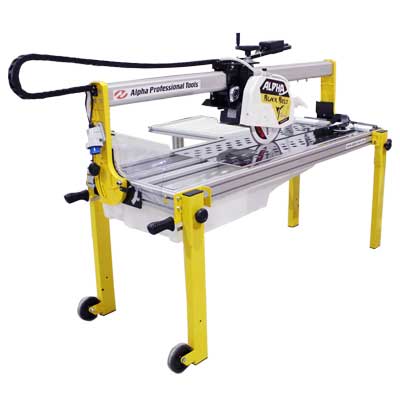

The Alpha Tools Black Belt Rail Saw (230 V variant) is a professional wet rail saw built for cutting large-format ceramic, porcelain, stone, and glass materials with precision. Equipped with a 230 V single-phase motor and a maintenance-free water delivery system, it delivers consistent wet cutting performance for demanding fabrication tasks in stone, tile, and masonry applications.
Key Features
- Heavy Duty Rail Saw, Ideal For Tile Installers, Stone Fabricators And Hardscape Contractors
- Rugged Aluminum Table Chassis For Stable Operation With A Long Life
- Equipped With 230V – 13.5amp Single Phase, 3HP (2.2KW), 2,800 RPM Motor With Direct Drive Shaft
- Supports 12” & 14” Blades With 1” And 60mm Arbors
- Cut Up To 4” Deep In A Single Pass, 5” With Step Cut
- The Cutting Head’s Mechanical Vertical Tilting System Allows For Cutting Depth Adjustment
- Stainless Steel Head Rails And Adjustable Armored Ball Bearings For Smooth And Precision Movement
- Cutting System’s Side Tilt Capability Eases Up To 45 Degree Cut (Ideal For Miter Cuts)
- Extremely Reliable, Maintenance Free Magnetic-Induction Water Pump Delivers Ample Water To Both Sides Of Blade
- Retractable Legs Include A Fall-Protection Device
- Table Handles And Heavy-Duty Wheels Make Easy Transportation
- Front, Back And Bilateral Blade Guards Minimize Exposure Of Blade For Safety And Reduce Water Splash
- Rip Cut Up To 51″ (130cm) and Diagonal Cut Up To 33″ (84cm)
- Maximum Load 485lbs (220kgs)
Specifications (230 V Version)
| Specification | Details |
|---|---|
| Model / Family | Alpha Black Belt Rail Saw (230 V variant) |
| Voltage | 230 V AC, Single-Phase |
| Frequency | 50/60 Hz |
| Amperage | ~13.5 A |
| Motor Output | 3.0 HP (2.2 kW) direct-drive |
| Max Speed | ~2,800 RPM |
| Blade Diameter Supported | 12″ / 14″ (300 mm / 350 mm) |
| Arbor Size | 1″ (25.4 mm) & 60 mm |
| Max Cutting Depth | Up to ~4″ (100 mm) single pass, ~5″ with step cuts |
| Max Cutting Length | ~51″ (130 cm) straight |
| Diagonal Cut Capacity | ~33″ (84 cm) |
| Weight | ~231 lbs (105 kg) |
| Water Pump | 230 V magnetic-induction system |
| Safety | Blade guards, retractable legs, splash control |
| Use | Large tile, stone panel, glass cutting (wet) |
