Alpha Professional Tools Countertop Trim Kit (Model ESC‑125)
Alpha Tools ESC‑125 Countertop Trim Kit is a complete countertop trimming and cutting kit designed for stone fabricators, contractors, and serious DIYers who need a clean, precise cut for pre‑fabricated stone countertops (granite, quartz, marble, engineered stone).
What This Kit Is
This is Alpha’s second‑generation Countertop Trim Kit centered around the ESC‑125 5″ wet/dry stone cutter, combined with a carriage assembly and 4‑foot guide rail system for accurate, straight cuts during countertop trimming.
Key Features and Benefits
-
All‑in‑One Trim Kit — everything you need in one package to trim stone countertops to a custom fit.
-
Wet Cutting System — built‑in water feed helps reduce dust and cool the blade for consistent performance.
-
High‑Quality Diamond Blade — includes a 5″ Alpha Eclipse II diamond blade with tall diamond layer for longer life and cleaner cuts.
-
Guide Rail & Carriage Assembly — provides stability and precise straight cutting.
-
Professional or DIY Use — suitable for stone fabricators or experienced home installers.

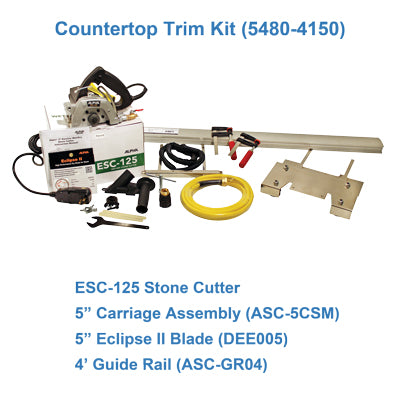

What’s Included
-
ESC‑125 5″ Wet Stone Cutter (Primary cutting tool)
-
5″ Carriage Assembly (ASC‑5CSM)
-
5″ Alpha Eclipse II diamond blade (DEE005)
-
4′ guide rail (ASC‑GR04)
-
ESC‑125 standard accessories and operator’s manual
Specifications
| Specification | Detail |
|---|---|
| Model / SKU | 5480‑4150 (ESC‑125 Countertop Trim Kit) |
| Voltage | 110 V (some vendors list 110/220 option) |
| Power | ~1,200 W |
| No‑Load Speed | ~12,000 RPM |
| Arbor Size | 7/8″ (22 mm) |
| Blade Size | 5″ (125 mm) |
| Max Cutting Depth | ~1‑5/8″ (41 mm) |
| Weight (Tool Only) | ~8.9 lbs (4.0 kg) |
| Carriage & Rail | Included for straight, controlled cuts |
| Warranty | Typically 1 year (check vendor/manual) |
Typical Uses
-
Trimming pre‑fabricated stone countertops for custom fitting
-
Cutting granite, quartz, marble, and engineered stone slabs
-
Producing clean, straight, professional‑quality cuts for installation
