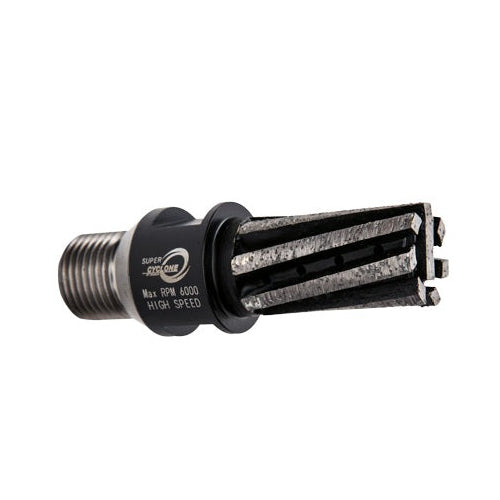

Diamax Super Cyclone High-Speed Finger Bit
The Diamax Super Cyclone High-Speed Finger Bit is a 1 5/8″ (≈ 40 mm) diamond-segmented finger bit designed for CNC machining of hard stone materials like engineered stone and granite. It features a smaller diameter, multi-segment design with a bottom cutting segment, allowing it to mill or plunge into slabs like a core bit while delivering high-speed, precision material removal. It’s intended for wet use only on CNC machines.
Key Features
-
Super Cyclone High-Speed Design: A smaller diameter, 7-segment configuration engineered for faster cutting and milling compared to standard finger bits.
-
Bottom Segment for Plunge Cutting: The bottom segment enables the operator to start cutting or drilling into the slab like using a core bit — useful for CNC operations.
-
Wet-Only Cutting: Optimized to be used with water to control heat and dust, extending tool life and improving cut quality.
-
Professional CNC Compatibility: Designed specifically for machining and profiling stone surfaces on CNC machines.
-
Durable Segments: Diamond segments provide fast, aggressive cutting action in hard engineered stone and natural granite.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Super Cyclone High-Speed Finger Bit |
| SKU | FBSHS158 |
| Segment Size | 1 5/8″ diameter × 22 mm segment length |
| Total Length | ≈ 40 mm usable length |
| Segment Count | 7 with bottom segment |
| Fitting / Shank | 1/2″ gas male threaded |
| Max RPM | 4,500 – 6,000 |
| Recommended Feed Rate | ~10″ – 20″/min (varies with material & setup) |
| Use | Wet only (CNC machining) |
| Materials | Engineered stone, granite |
Segment Options
| ITEM # | SEGMENT SIZE | SEGMENT LENGTH | SEGMENT COUNT | FITTING | MAX RPM |
|---|---|---|---|---|---|
| FBSHS158 | 1 5/8″ x 22 mm | 40 mm | 7 w/ bottom segment | 1/2 gas male | 4,500 – 6,000 |
| FB158TS | 1 5/8″ x 22 mm | 40 mm | 8 (4 twin segments) | 1/2 gas male | 4,500 – 6,000 |
| FBSHS200 | 2″ x 22 mm | 50 mm | 7 w/ bottom segment | 1/2 gas male | 4,500 – 6,000 |
