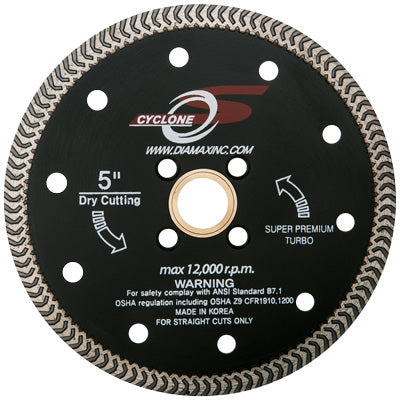

Diamax TBA50 – 5″ Cyclone S Arrowtek Turbo Diamond Blade

Professional Turbo Diamond Blade for Granite, Quartzite & Engineered Stone

The Diamax TBA50 – 5″ Cyclone S Arrowtek Turbo Diamond Blade is a high-performance cutting blade engineered for demanding professional stone fabrication and installation applications. Part of Diamax’s advanced Cyclone S Series, this blade incorporates innovative Arrowtek turbo rim technology, delivering faster cutting speeds, smoother edge quality, and extended blade life when working with dense natural and engineered materials.

The precision-designed Arrowtek turbo rim enhances airflow and debris removal during operation, helping reduce heat buildup while maintaining consistent cutting efficiency. This advanced rim pattern allows the blade to cut aggressively while still producing clean, controlled edges with minimal chipping—especially important when working with premium materials such as engineered stone, granite, quartzite, marble, and other hard surfaces.

Manufactured with a high-concentration industrial diamond bond matrix, the TBA50 is built for durability and long service life under continuous heavy-duty use. The reinforced steel core helps reduce vibration, improving operator control and cutting accuracy whether performing straight cuts, trim work, or detailed fabrication tasks.

Designed for versatility, the 5″ diameter blade is compatible with most standard angle grinders and handheld saws. It supports both wet and dry cutting applications, giving professionals flexibility based on jobsite requirements. Wet cutting helps extend blade life and control dust, while dry cutting offers convenience for quick adjustments and on-site installations.

Ideal for countertop fabrication, slab trimming, remodeling, and stone finishing work, the Diamax TBA50 Cyclone S Arrowtek Turbo Blade delivers reliable performance, precision cutting, and the durability professionals depend on.

Key Features & Benefits

Advanced Arrowtek Turbo Rim Design

Improves cutting speed and edge quality compared to traditional turbo blades by enhancing diamond exposure and reducing drag during cutting on hard stone surfaces.

Optimized Diamond Segment

Solid diamond segment design (approximately 8 mm × 2.4 mm) provides an ideal balance between aggressive cutting speed and long-term durability.

Reduced Chipping & Smooth Edge Performance

Engineered to produce clean, controlled cuts with minimal surface chipping on dense materials.

Durable High-Concentration Diamond Bond

Built for extended blade life under continuous heavy-duty professional use.

Reinforced Steel Core

Minimizes vibration, increases stability, and improves operator control for straighter, more accurate cuts.

Wet or Dry Cutting Capability

Provides flexibility for both shop and field applications depending on dust control and jobsite requirements.

Tool Compatibility

Designed for standard 5″ angle grinders and handheld stone saws with multi-arbor compatibility.

Technical Specifications

Product Overview

• Model / SKU: TBA50

• Blade Diameter: 5″ (≈127 mm)

• Segment Size (W × H): 8 mm × 2.4 mm (approx.)

• Arbor / Bore: 5/8″ – 7/8″ – 20 mm

• Max RPM: 12,000

• Use Type: Wet or dry cutting

• Compatible Tools: Angle grinder, hand saw

• Materials Cut: Engineered stone, granite, quartzite, marble

Available Sizes in the Cyclone S Arrowtek Series

5″ – TBA50

• Segment: 8 mm × 2.4 mm

• Arbor: 5/8″ – 7/8″ – 20 mm

• Bushing #: BS57820S

• Max RPM: 12,000

5.5″ – TBA55

• Segment: 8 mm × 2.4 mm

• Arbor: 5/8″ – 7/8″ – 20 mm

• Bushing #: BS57820S

• Max RPM: 10,185

6″ – TBA60

• Segment: 8 mm × 2.4 mm

• Arbor: 5/8″ – 7/8″ – 20 mm

• Bushing #: BS57820S

• Max RPM: 10,185

Recommended Applications

Countertop Fabrication

Ideal for cutting and shaping granite, quartzite, and engineered stone slabs for countertops and custom stone projects.

Slab Trimming & Edge Work

Excellent for precise trim work, edge detailing, and finishing applications.

Remodeling & On-Site Installation

Supports wet or dry cutting for flexibility during field installations and jobsite adjustments.

Professional Stone Fabrication

Built for contractors, fabricators, and installers who require durability, speed, and consistent performance when cutting hard stone materials.

Why Choose the Diamax TBA50 Cyclone S Arrowtek Blade?

The Diamax TBA50 delivers a powerful combination of aggressive cutting speed, precision edge control, and long-term durability. Its advanced Arrowtek turbo rim technology reduces drag while maximizing cutting efficiency, making it ideal for today’s dense natural and engineered stone materials.

For professionals who demand reliability, clean cuts, and extended blade life in heavy-duty stone applications, the TBA50 stands out as a dependable, high-performance solution.
