CNZW8045 – 8″ Z‑Turbo Diamond Grinding/Polishing Wheel
The CNZW8045 is an 8″ Z‑Turbo Diamond Grinding/Polishing Wheel with a 45‑grit profile. It’s designed for aggressive stock removal, surface leveling, and initial grinding on hard surfaces like concrete and stone. The Z‑Turbo pattern delivers fast material removal with good debris clearance.

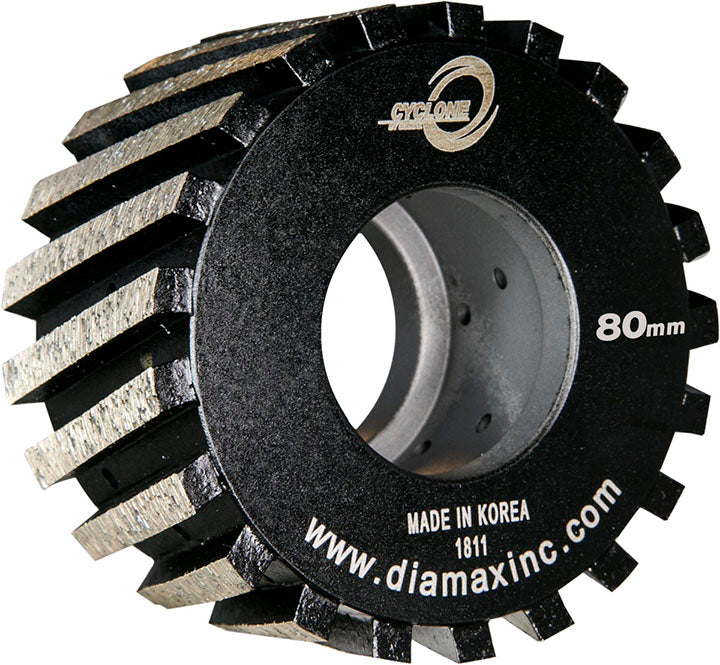

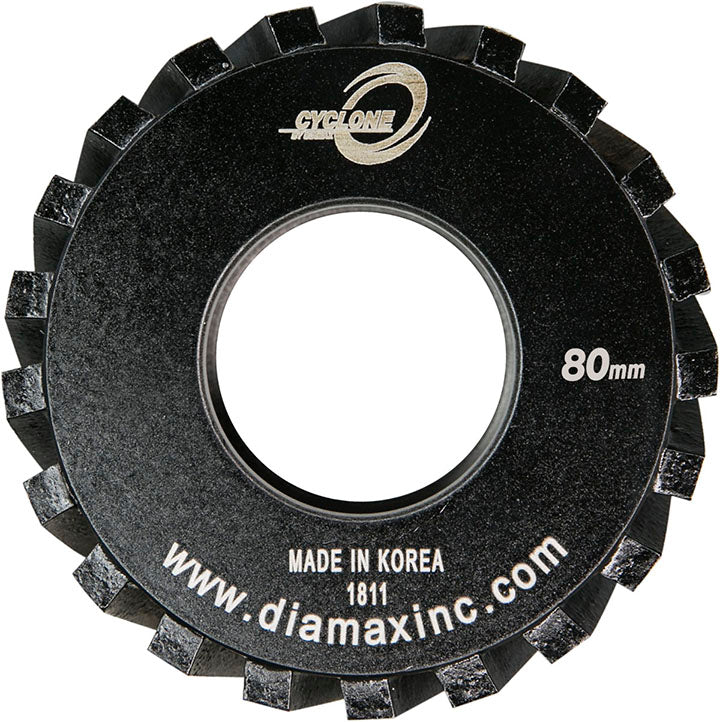

CNC Z-Wheel x 35mm bore, 80mm O.D x 45mm High x 21 Seg polishing pad designed for fast, smooth stone finishing. Ideal for granite, marble, and engineered stone surfaces. Delivers reliable performance with angle grinders or air polishers.
Key Features
-
8″ diameter suitable for large grinders
-
Z‑Turbo segmented design for aggressive grinding
-
45‑grit for fast material removal and initial leveling
-
Balanced cut with dust clearance channels
-
Works wet or dry depending on tool and surface
Specifications
| Specification | Details |
|---|---|
| SKU | CNZW8045 |
| Wheel Type | Z‑Turbo Diamond Grinding/Polishing Wheel |
| Diameter | 8 inches |
| Grit | 45 (aggressive) |
| Segment Type | Z‑Turbo |
| Arbor | Standard angle grinder fit |
| Use | Concrete, stone, engineered surfaces |
| Wet/Dry | Wet and dry |
Available Sizes and Item Numbers
| ITEM # | DIAMETER | FITTING | SEGMENT NO. | FEED RATE | Max RPM |
|---|---|---|---|---|---|

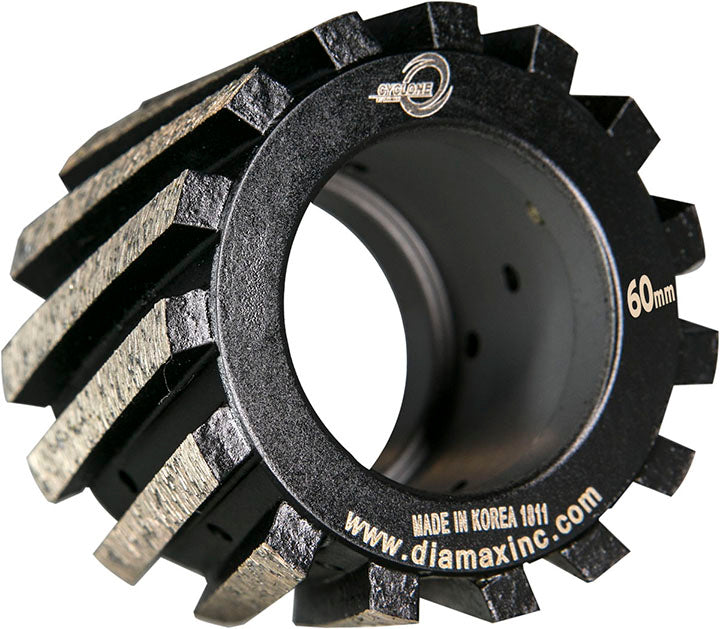

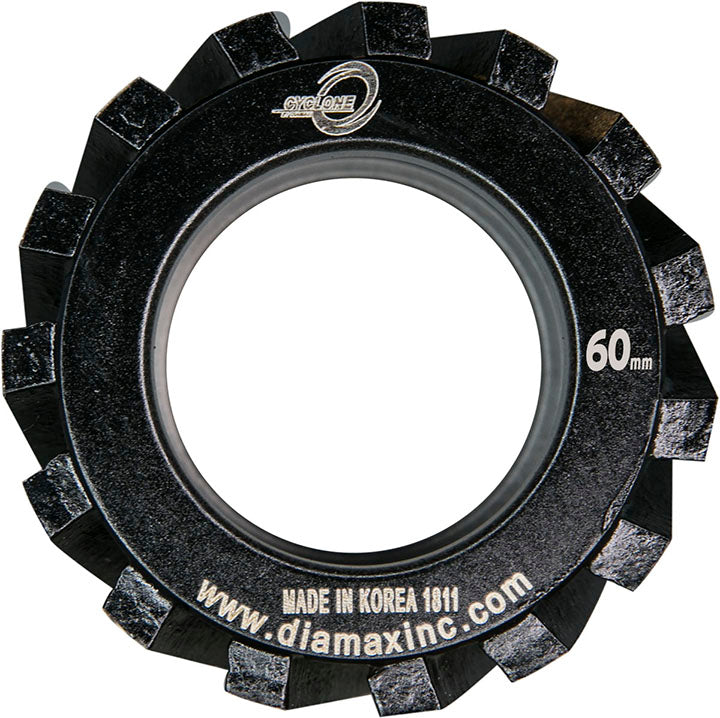

| CNZW6045 | 60 mm x 40 mm | 35 mm bore | 15 | 110 IPM at 5 mm per pass | 6,000 |
| CNZW8035 | 80 mm x 35 mm | 35 mm bore | 21 | — | 6,000 |
| CNZW8045 | 80 mm x 45 mm | 35 mm bore | 21 | — | 6,000 |
