Diamax Cyclone Porcelain Tile Bit
Professional Diamond Drill Bit for Porcelain, Tile & Ultra-Compact Surfaces
Precision, power, and longevity — built for the toughest tile jobs.
The Diamax Cyclone Porcelain Tile Bit is a premium, professional-grade drilling solution designed for installers and fabricators who require precision, durability, and clean performance when working with ultra-dense materials.
Engineered specifically for challenging surfaces, this tile bit delivers accurate, chip-minimized holes in:
-
Porcelain
-
Ceramic
-
Engineered stone
-
Quartz
-
Granite
-
Marble
-
Ultra-compact materials

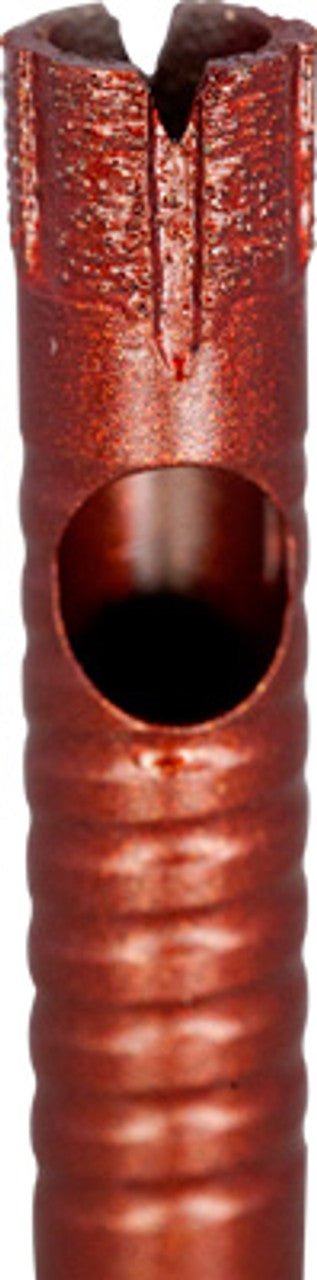

Advanced Diamond-Sintered Turbo Rim Technology
Aggressive Yet Controlled Drilling Performance
Featuring a diamond-sintered turbo rim, the Cyclone Tile Bit delivers fast, clean, and stable drilling performance.
-
Industrial-grade diamonds embedded in a durable bond matrix
-
Extended service life compared to standard carbide bits
-
Consistent cutting efficiency
Enhanced Cooling & Debris Removal
The turbo rim design:
-
Improves debris evacuation
-
Reduces heat buildup
-
Maintains drilling stability
-
Minimizes cracking and chipping in hard porcelain tiles
Wet and Dry Drilling Capability
Dry Drilling Performance
-
No constant water flow required
-
Ideal for quick on-site installations
-
Perfect where wet drilling isn’t practical
Wet Drilling Option
-
Extends tool life
-
Controls dust
-
Helps manage heat during extended drilling
The Cyclone Porcelain Tile Bit is one of the first truly effective dry drill bits designed specifically for porcelain tile, offering unmatched convenience and flexibility.

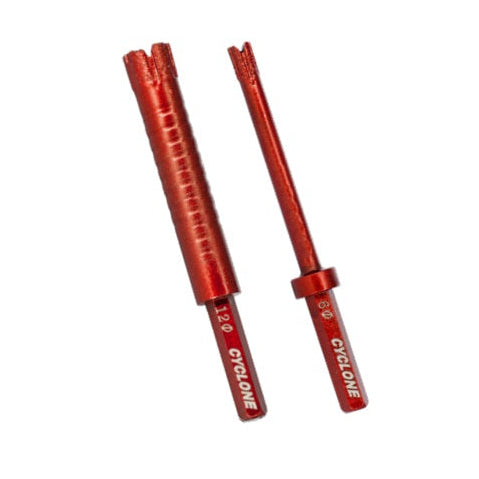

Hex-Shank Design for Secure Drill Compatibility
Universal Fit for Impact & Rotary Drills
-
Hexagonal chuck shank
-
Secure grip with reduced slippage
-
Improved torque transfer
-
Less vibration during drilling
-
Compatible with most standard impact and rotary drills
No specialized equipment required — easy integration into existing tool setups.
Key Features & Benefits
Diamond-Sintered Turbo Rim
Ensures fast, clean drilling with minimal chipping and longer bit life.
Designed for Hard Materials
Optimized for porcelain, ceramic, engineered stone, quartz, granite, marble, and ultra-compact surfaces.
Wet or Dry Use
Provides flexibility depending on job site requirements.
Reduced Edge Breakout
Improves hole accuracy and finish quality.
Hex-Shank Chuck
Secure fit in impact and rotary drills for stable operation.
Durable Bond Matrix
Extends tool life under demanding professional use.
Technical Specifications

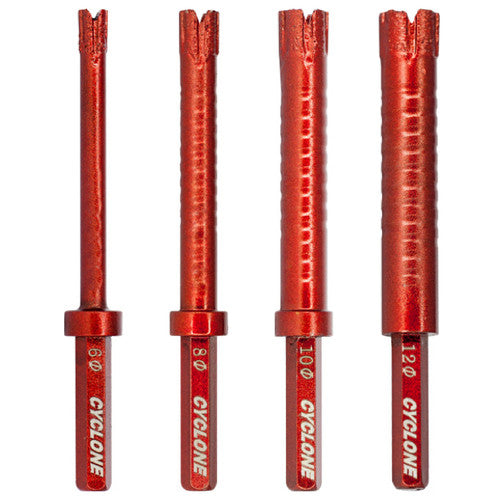

Available Sizes & Performance Data
3/16″ (5 mm) – Item # TDBC316
-
Usable Length: 2¼″
-
Max RPM: 1,500 – 2,000
1/4″ (6 mm) – Item # TDBC14
-
Usable Length: 2¼″
-
Max RPM: 1,500 – 2,000
5/16″ (8 mm) – Item # TDBC516
-
Usable Length: 2¼″
-
Max RPM: 1,500 – 2,000
3/8″ (10 mm) – Item # TDBC38
-
Usable Length: 2¼″
-
Max RPM: 1,500 – 2,000
1/2″ (12 mm) – Item # TDBC12
-
Usable Length: 2¼″
-
Max RPM: 1,500 – 2,000
Ideal Applications
Tile Installation & Remodeling
-
Drilling holes for anchors and fasteners
-
Mounting bathroom and kitchen fixtures
-
Installing plumbing and electrical components
Stone & Countertop Fabrication
-
Engineered stone modifications
-
Granite and marble drilling
-
Ultra-compact surface installations
Why Choose the Cyclone Porcelain Tile Bit?
If you're working with porcelain or ultra-compact tile — materials known for cracking or rapidly wearing down ordinary bits — the Cyclone Porcelain Tile Bit delivers a significant upgrade in performance.
Its diamond-tipped turbo rim cuts smoothly and cleanly, dramatically reducing the risk of chipping or cracking, even at higher speeds. The ability to drill both dry and wet provides unmatched job-site flexibility, while the hex shank ensures compatibility with standard drills.
For professional tile contractors, remodelers, stone fabricators, and installers, the Diamax Cyclone Porcelain Tile Bit offers a durable, precise, and dependable drilling solution for today’s toughest materials.
