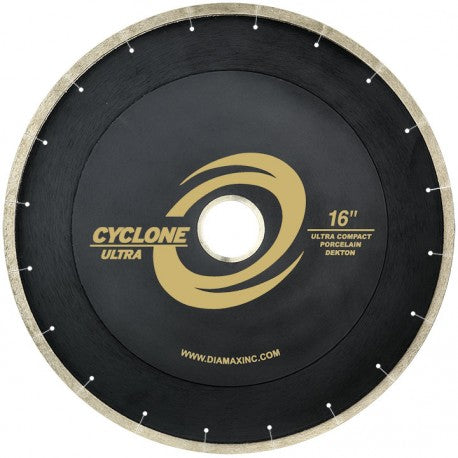

Ultra-Silent Core Diamond Cutting Blade
The ultra‑silent core diamond cutting blade is designed for precision wet cutting of ultra‑hard surfaces like sintered stone, porcelain, and ultra‑compact materials. Its reinforced core reduces noise and vibration, delivering clean, chip‑free cuts with stable performance on bridge saws and large saw machines.
Key Features
-
14″ to 16" Silent Core Design — Reduces noise and vibration for quieter, stable cuts.
-
Reinforced Core Construction — Improves straight cutting performance and stability.
-
High‑Quality Diamond Bond — Fast, efficient cutting with minimal chipping.
-
Optimal for Wet Cutting — Keeps blade cool and prolongs life on hard materials.
-
Fits Standard Arbor Sizes — Works with 50/60 mm arbor bridge saws and industrial cutters.
Specifications
| Attribute | Details |
|---|---|
| Blade Diameter | 14″ to 16" |
| Core Type | Silent / reinforced |
| Arbor / Bore | 50 / 60 mm to 90mm |
| Segment Height | Approx. 10 mm |
| Max RPM | ~2,000 RPM |
| Cutting Type | Wet cutting |
| Compatible Materials | Sintered stone, porcelain, ultra‑compact surfaces |
| Typical Use | Bridge saws, straight & miter cuts |
Item & Size Table
| ITEM # | DIAMETER | SEGMENT | ARBOR | BUSHING # | RPM |
|---|---|---|---|---|---|
| CUSB14 | 14″ | 10 mm | 50/60 mm | BSH50602 | 2,200 |
| CUSB16 | 16″ | 10 mm | 50/60 mm | BSH50602 | 2,000 |
| CUSB1690 | 16″ | 10 mm | 90 mm | NA | 2,000 |
