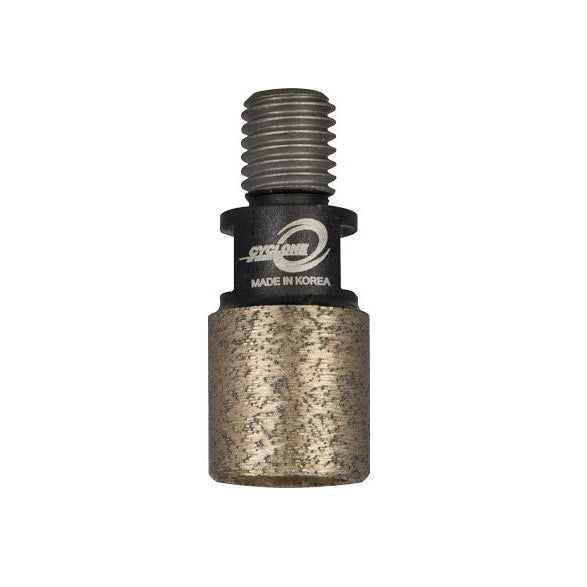

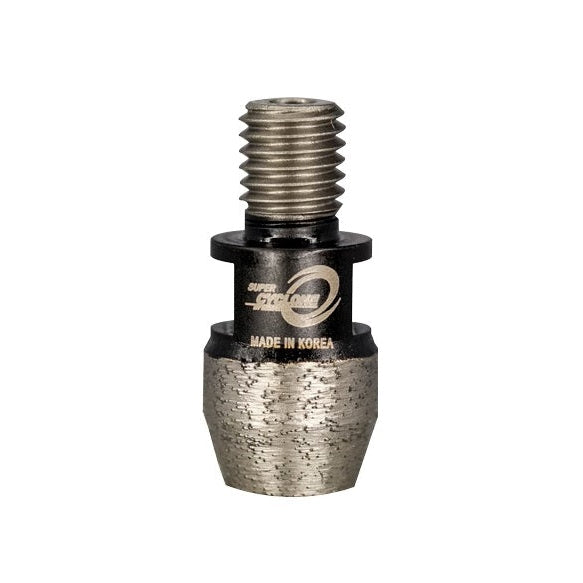

FBSM35 Super Cyclone Mandrel (Short)
The FBSM35 Super Cyclone Mandrel (Short) is a compact 35 mm threaded mandrel designed for securely mounting Cyclone and diamond tooling in stone fabrication and CNC applications. Its short length makes it ideal for tight working areas such as sink cut-outs, offering strong stability and reliable performance during wet operations.
Key Features
-
Short 35 mm length for compact and restricted working spaces
-
M12 female to ½″ gas male thread for broad compatibility
-
Ensures secure and stable attachment of Cyclone tooling
-
Suitable for wet stone fabrication applications
-
Ideal for CNC machines and stone polishing/cutting setups
Specifications
| Specification | Detail |
|---|---|
| SKU | FBSM35 |
| Product Type | Super Cyclone Mandrel – Short |
| Female Thread | M12 |
| Male Thread | ½″ Gas |
| Length | 35 mm |
| Application | Stone CNC tooling, sink cut-out work |
| Operation | Wet use recommended |
| Material | Hardened steel |
Recommended Items & Feed Rates
| ITEM # | SIZE | FITTING | BOND | MAX RPM | SUGGESTED FEED RATE |
|---|---|---|---|---|---|
| FBSTIP | 20 mm Cyclone | M12 | Soft | 4,000 | 30″ – 40″ / PM |
| FBSTIP-S | 22 mm Super Cyclone | M12 | Hard | 4,000 | 30″ – 40″ / PM |
| FBSTIP-T | Tapered 20 mm Super Cyclone | M12 | Hard | 4,000 | 30″ – 40″ / PM |
| FBSTIP-RT | Reverse thread, 20 mm Super Cyclone | M12 | Hard | 5,500 | 30″ – 40″ / PM |
Incremental Accessories
| ITEM # | DESCRIPTION | SHAFT LENGTH | FITTING |
|---|---|---|---|
| FBSTIP-M | Cyclone mandrel with sleeve | 70 mm | M12 female – 1/2 gas male |
| FBSM-RT | Reverse thread Super Cyclone mandrel | 70 mm | M12 female – 1/2 gas male |
| FBSM35 | Super Cyclone Mandrel Thread (short) | 35 mm | M12 female – 1/2 gas male |
| FBSM-RT25 | Reverse thread Super Cyclone mandrel (short) | 25 mm | M12 female – 1/2 gas male |
