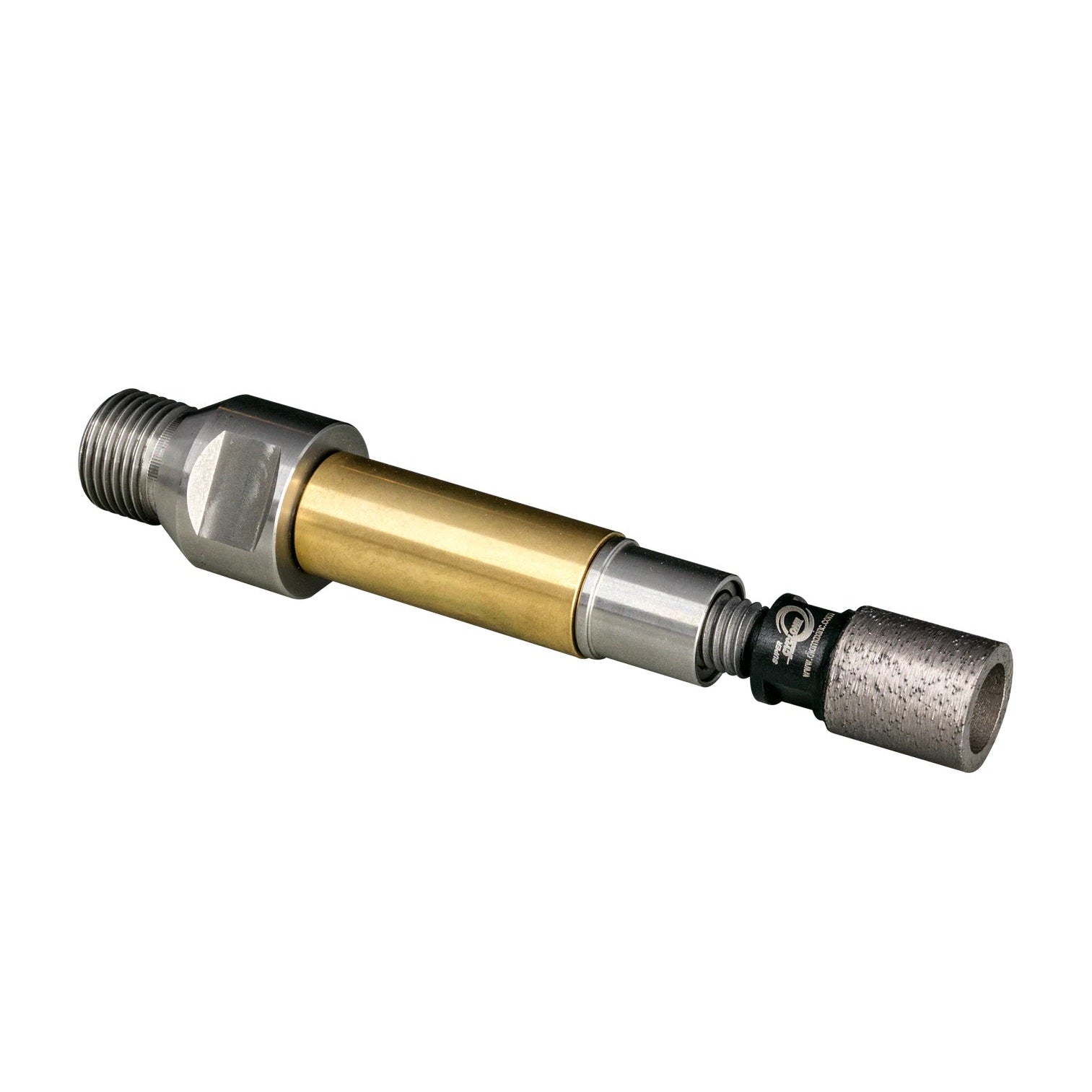

FBSM-RT Reverse Thread Super Cyclone Mandrel
The FBSM-RT Reverse Thread Super Cyclone Mandrel is a heavy-duty mandrel designed for securely mounting reverse-thread Cyclone and diamond tooling in stone fabrication applications. Its longer body provides added stability, making it ideal for CNC machines and sink cut-out operations where strong, vibration-free performance is required during wet cutting.
Key Features
-
Reverse thread design for secure locking with reverse-thread tooling
-
Extended mandrel length for enhanced stability and control
-
M12 female to ½″ gas male reverse thread compatibility
-
Designed for Cyclone and diamond stone tooling
-
Suitable for CNC machines and sink cut-out applications
-
Recommended for wet operation to improve tool life and performance
-
Manufactured from high-strength hardened steel
Specifications
| Specification | Detail |
|---|---|
| SKU | FBSM-RT |
| Product Type | Reverse Thread Super Cyclone Mandrel |
| Female Thread | M12 |
| Male Thread | ½″ Gas (Reverse Thread) |
| Length | Approx. 70 mm |
| Application | Stone CNC tooling, sink cut-outs |
| Operation | Wet use recommended |
| Material | Hardened steel |
Recommended Items & Feed Rates
| ITEM # | SIZE | FITTING | BOND | MAX RPM | SUGGESTED FEED RATE |
|---|---|---|---|---|---|
| FBSTIP | 20 mm Cyclone | M12 | Soft | 4,000 | 30″ – 40″ / PM |
| FBSTIP-S | 22 mm Super Cyclone | M12 | Hard | 4,000 | 30″ – 40″ / PM |
| FBSTIP-T | Tapered 20 mm Super Cyclone | M12 | Hard | 4,000 | 30″ – 40″ / PM |
| FBSTIP-RT | Reverse thread, 20 mm Super Cyclone | M12 | Hard | 5,500 | 30″ – 40″ / PM |
Incremental Accessories
| ITEM # | DESCRIPTION | SHAFT LENGTH | FITTING |
|---|---|---|---|
| FBSTIP-M | Cyclone mandrel with sleeve | 70 mm | M12 female – 1/2 gas male |
| FBSM-RT | Reverse thread Super Cyclone mandrel | 70 mm | M12 female – 1/2 gas male |
| FBSM35 | Super Cyclone Mandrel Thread (short) | 35 mm | M12 female – 1/2 gas male |
| FBSM-RT25 | Reverse thread Super Cyclone mandrel (short) | 25 mm | M12 female – 1/2 gas male |
