Diamax Super Cyclone Turbo Blade

Professional Diamond Blade for Granite, Quartz & Engineered Stone

The Diamax Super Cyclone Turbo Blade is a professional-grade diamond cutting tool engineered for heavy-duty cutting of natural and engineered stone surfaces, including granite, quartz, marble, and other dense materials.

Designed with premium super-abrasive diamonds, a reinforced steel core, and an aggressive turbo rim, this blade delivers fast, precise, and efficient cutting while maintaining long-term durability — even under demanding fabrication or installation conditions.

Heavy-Duty Turbo Rim Design for Fast, Clean Cuts

Aggressive Cutting with Minimal Chipping

The turbo rim geometry allows for:

• Faster material removal

• Straighter, cleaner cuts

• Reduced edge chipping

• Improved cutting efficiency compared to economy blades

Its compact 4.5″–6″ class size provides maneuverability while maintaining professional cutting power.

Reinforced Core & 9.5 mm Heavy-Duty Segment

Built for Strength, Stability & Longevity

• Tall 9.5 mm segment height for extended blade life

• Thicker steel core for improved rigidity

• Reduced vibration during operation

• Greater control during detailed or tight cuts

This construction makes it ideal for cutting dense materials such as granite and engineered stone.

Super-Abrasive Diamond Bond Technology

The premium diamond bond matrix ensures:

• Aggressive cutting speed

• Smooth, consistent performance

• Long wear life under tough working conditions

• Reliable results across multiple projects

Wet and Dry Cutting Versatility

Wet Cutting Benefits

• Extends diamond life

• Reduces heat buildup

• Minimizes airborne dust

• Enhances cut smoothness

Dry Cutting Advantages

• Ideal for on-site installations

• No water setup required

• Greater portability and convenience

This flexibility makes the Super Cyclone Turbo Blade suitable for shop fabrication and field installation work.

Key Features

9.5 mm Tall Heavy-Duty Segment

Provides extended cutting life and durability on granite and engineered stone.

Turbo Rim Geometry

Combines aggressive speed with cleaner, straighter cuts.

Reinforced Steel Core

Enhances stability and reduces vibration during demanding applications.

Super-Abrasive Diamond Bond

Ensures efficient cutting and long-term wear resistance.

Wet or Dry Cutting Capability

Adapts to various jobsite and fabrication conditions.

Versatile Stone Applications

Suitable for slab cutting, countertop fabrication, tile trimming, and heavy-duty masonry work.

Technical Specifications

Product Specifications

• Brand / Series: Diamax Super Cyclone Turbo Blade

• Blade Size Range: 4.5″ – 7″ (TBSQ60 corresponds to 6″ model)

• Segment / Rim Height: 9.5 mm

• Arbor / Bushing: 5/8″ – 7/8″ + 20 mm bushing

• Cutting Method: Wet or Dry

• Recommended Materials: Granite, engineered stone, dense natural stone

• Typical Applications: Slab cutting, countertop fabrication, tile trimming, shaping, heavy-duty stone cutting

Typical Applications & Use Cases

Countertop & Slab Fabrication

• Cutting and shaping granite or engineered stone slabs

• Preparing countertops, vanities, and tabletops

On-Site Stone Installation

• Trimming edges

• Making precise cuts in tight spaces

• Field fabrication requiring mobility and control

Tile & Masonry Work

• Cutting dense stone tiles

• Heavy-duty masonry applications

• Wet or dry cutting depending on site conditions

Available Sizes & RPM Ratings

Super Cyclone Turbo Blade Series

TBSQ45 – 4.5″ Blade

• Arbor: 5/8″ – 7/8″ – 20 mm

• Max RPM: 13,000

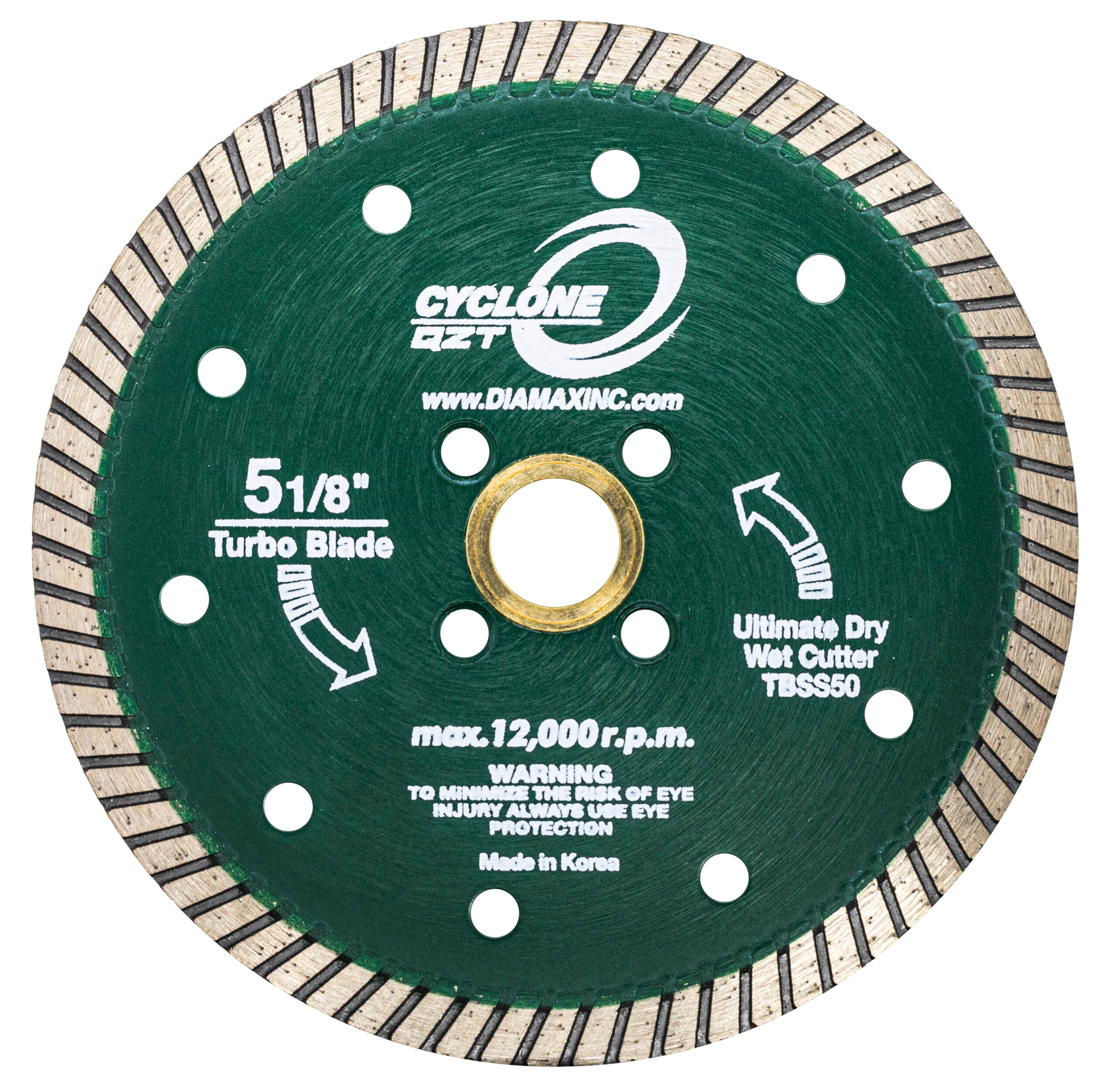

TBSQ50 – 5 1/8″ Blade

• Arbor: 5/8″ – 7/8″ – 20 mm

• Max RPM: 12,000

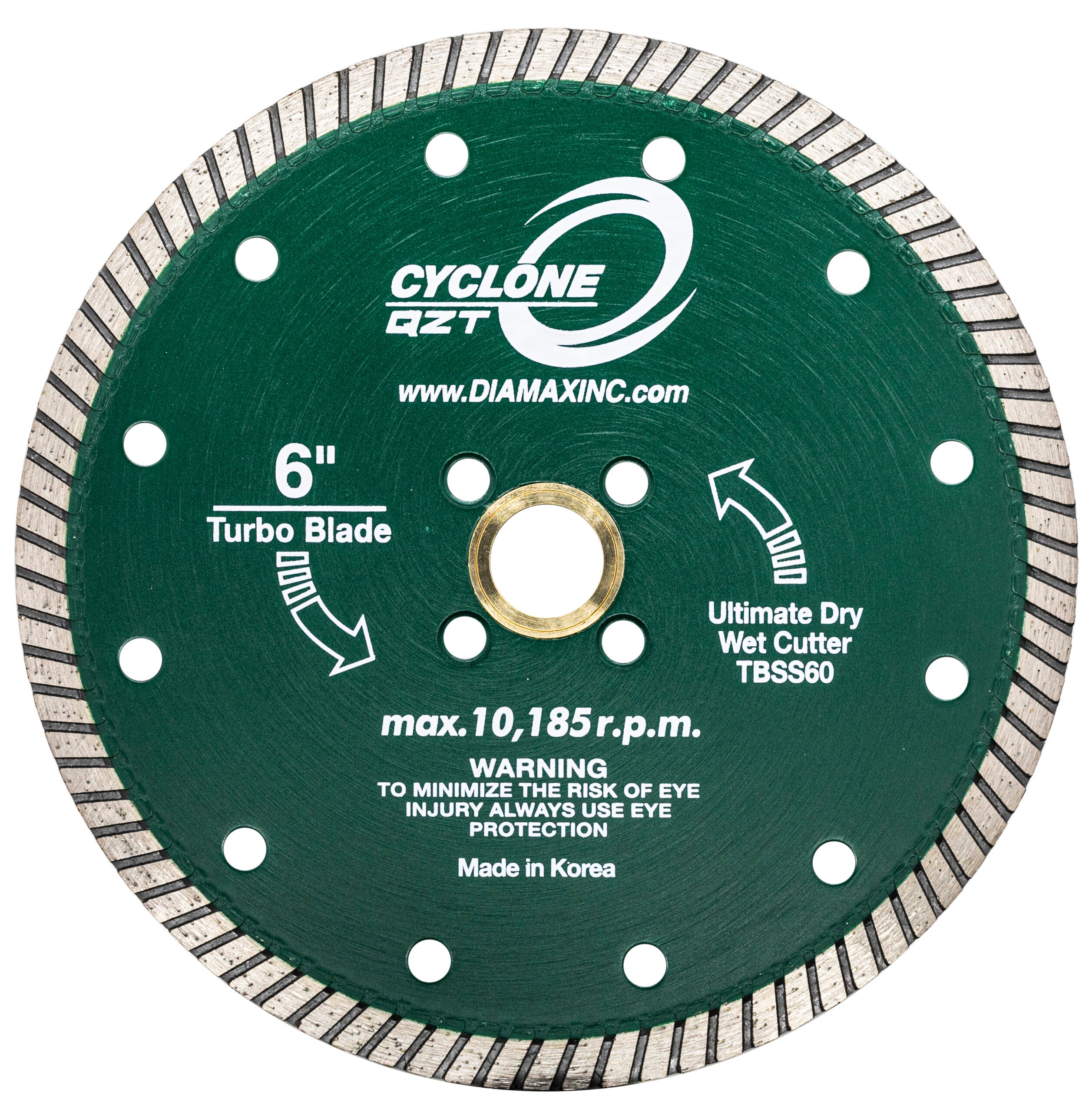

TBSQ60 – 6″ Blade

• Arbor: 5/8″ – 7/8″ – 20 mm

• Max RPM: 10,185

TBSQ70 – 7″ Blade

• Arbor: 5/8″ – 7/8″ – 20 mm

• Max RPM: 8,730

Why Choose the Super Cyclone Turbo Blade?

If you're cutting granite, engineered stone, or other dense materials and need a blade that balances power, durability, and long service life, the Super Cyclone Turbo Blade is a strong professional choice.

Its 9.5 mm heavy-duty segment and reinforced core provide strength and longevity beyond economy blades. The super-abrasive diamond bond ensures fast, efficient cutting, while wet and dry compatibility allows flexibility across multiple jobsite environments.

For stone fabricators, contractors, and tile professionals seeking consistent heavy-duty performance, the Super Cyclone Turbo Blade delivers reliable results across every cut.
