Diamax Cyclone Silent Core Blade
The Diamax Cyclone Silent Core Blade is a professional-grade diamond bridge saw blade designed for wet cutting of engineered stone, granite, and marble. It utilizes high-speed patterned diamond technology and a silent core design to deliver fast, smooth, and precise cuts with reduced vibration and noise compared to conventional blades, making it ideal for fabrication shops and bridge saw applications.

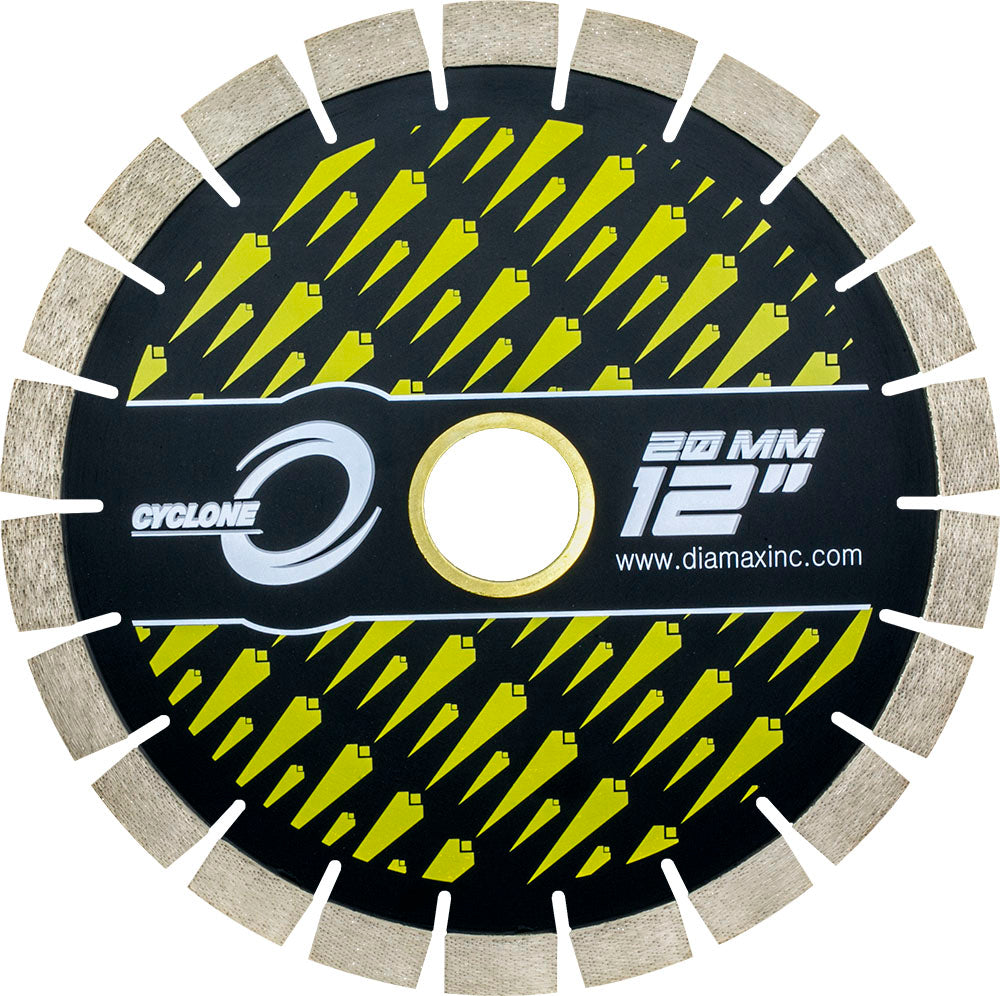

The Diamax Cyclone Silent Core Diamond Blade designed for wet cutting of engineered stone, granite, and marble using bridge saws and other wet stone cutting machines. It is part of the Cyclone Silent Core family that uses a high-speed diamond pattern and a silent core to provide fast, smooth cutting with reduced vibration and noise. 12" Cyclone New Silent Diamond Allocation polishing pad designed for fast, smooth stone finishing. Ideal for granite, marble, and engineered stone surfaces. Delivers reliable performance with angle grinders or air polishers.
Key Features
Silent Core Construction
Reduces cutting noise and vibration for improved comfort and control during operation.

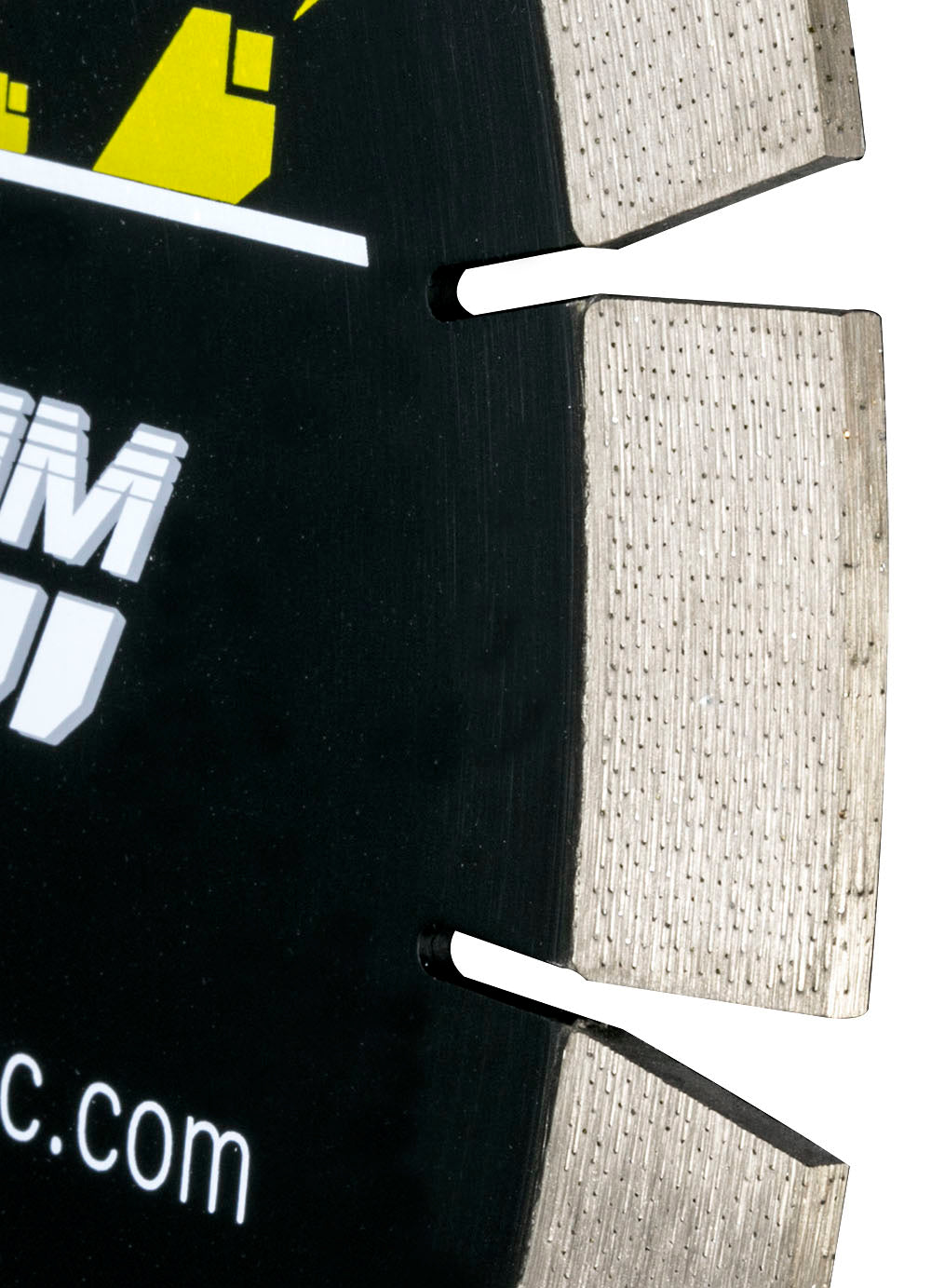

High-Speed Patterned Segments
Nine layers of diamond pattern technology deliver efficient cutting performance and longer life compared to basic blades.
Pressure-Tested Segments
Welded segments are pressure tested to ensure strength and durability under load.
Wet Cutting Only
Designed strictly for use with water to cool the blade, reduce dust, and extend service life.
Suitable for Stone Materials
Optimized for hard materials such as engineered stone, granite, and marble.
Specifications
Model / SKU
SCDA1426
Blade Diameter
14″ (≈355 mm)
Segment Height
26 mm
Arbor / Bore
50 mm and 60 mm
Wet / Dry Use
Wet cutting only
RPM Range
~1,400 – 1,600
Feed Rate
~10–17 ft/min typical for stone cutting
Suitable Materials
Granite, engineered stone, marble, quartz
Item Specifications
SCDA1220
-
Diameter: 12″
-
Segment: 20 mm
-
Arbor: 50/60 mm
-
Bushing #: BSH50601
-
Max RPMS: 1,600 – 1,800
SCDA1420
-
Diameter: 14″
-
Segment: 20 mm
-
Arbor: 50/60 mm
-
Bushing #: BSH50601
-
Max RPMS: 1,400 – 1,600
SCDA1426
-
Diameter: 14″
-
Segment: 26 mm
-
Arbor: 50/60 mm
-
Bushing #: BSH50601
-
Max RPMS: 1,400 – 1,600
SCDA1620
-
Diameter: 16″
-
Segment: 20 mm
-
Arbor: 50/60 mm
-
Bushing #: BSH50601
-
Max RPMS: 1,200 – 1,400
SCDA1626
-
Diameter: 16″
-
Segment: 26 mm
-
Arbor: 50/60 mm
-
Bushing #: BSH50601
-
Max RPMS: 1,200 – 1,400
SCDA1690
-
Diameter: 16″
-
Segment: 26 mm
-
Arbor: 90 mm
-
Bushing #: NA
-
Max RPMS: 1,200 – 1,400
SCDA1826
-
Diameter: 18″
-
Segment: 26 mm
-
Arbor: 50/60 mm
-
Bushing #: BSH50601
-
Max RPMS: 1,000 – 1,200
