Diamax Cyclone S Super Q Silent Diamond Reinforced Core Blade

The Diamax Cyclone S Super Q Silent Diamond Reinforced Core Blade is a professional-grade bridge saw diamond blade engineered for wet cutting of hard stone materials like engineered stone, granite, and quartzite. Its reinforced silent core and advanced U-shaped diamond segment design deliver faster, quieter cutting with clean straight and miter cuts — ideal for slab fabrication and countertop production.

Diamax SCQU1420 is a 14″ Cyclone S Super Q Silent Core Bridge Saw Blade engineered for professional stone fabrication. It’s designed to provide fast, smooth straight and miter cuts through hard materials such as engineered stone, granite, and quartzite with reduced noise and improved durability on bridge saws.

Key Features

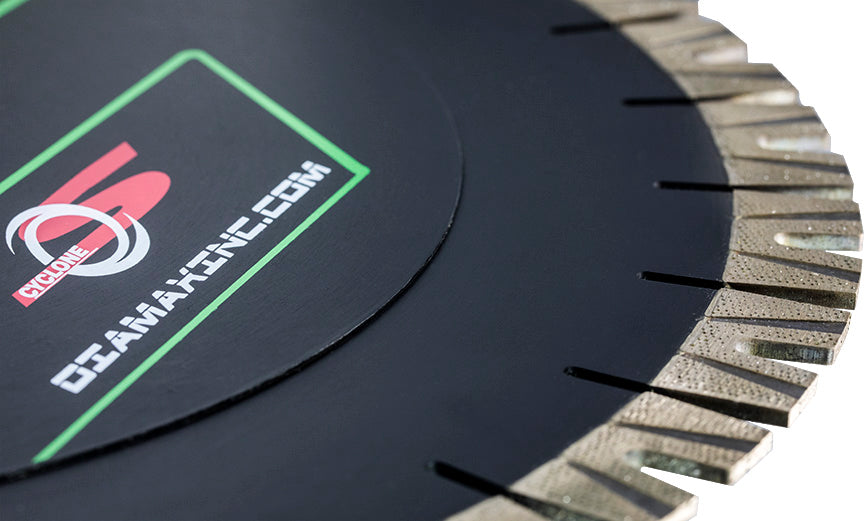

Silent Core Construction:

Reduces vibration and noise during cutting for a more controlled and comfortable operation.

Reinforced Core:

Allows for stronger performance and supports miter cuts up to ~40 % of the straight feed rate without losing stability.

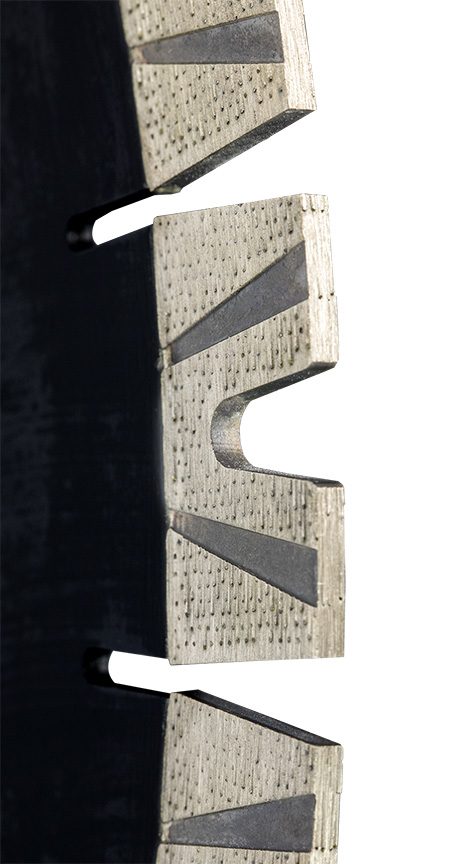

U-Shaped Segment Design:

U-shaped diamond segments enhance cutting speed and help prevent glazing and clogging.

Straight & Miter Cutting:

Built to perform both cut types efficiently on dense stone surfaces.

Designed for Wet Cutting:

Optimized for use with water to cool the blade and reduce dust.

Wet Cutting Only:

Intended for use with water to cool the blade, reduce dust and prolong diamond life.

Bridge Saw Compatibility:

Fits most bridge saw machines with standard arbor adapters for professional fabrication workflows.

Specifications

Brand:

Diamax Inc.

Model / SKU:

SCQU1420

Product Type:

Diamond Bridge Saw Blade — Cyclone S Super Q Silent Core

Diameter:

14″ (≈356 mm)

Segment Height:

20 mm × ~3.2 mm

Arbor / Bore:

50/60 mm standard

Maximum RPM:

1,900 rpm recommended

Material Compatibility:

Engineered stone, granite, quartzite

Feed Rates (Suggested on Quartzite):

• Straight Cuts: ~118″/min
• Miter Cuts: ~74″/min

Cutting Method:

Wet only (water required)

Typical Tools:

Bridge saw machines with appropriate arbor adapters

Pro Tip

The reinforced silent core and advanced segment pattern help reduce noise and vibration, making this blade especially well-suited for professional stone fabrication shops and high-volume countertop cutting workflows.

Product Variants

SCQU1420

ITEM #: SCQU1420
SIZE: 14″
SEGMENT: 20 mm
ARBOR: 50/60 mm
BUSHING #: BSH50602
RPM: 1,900
Suggested Feed Rate
Straight: 118″/min
Miter: 74″/min

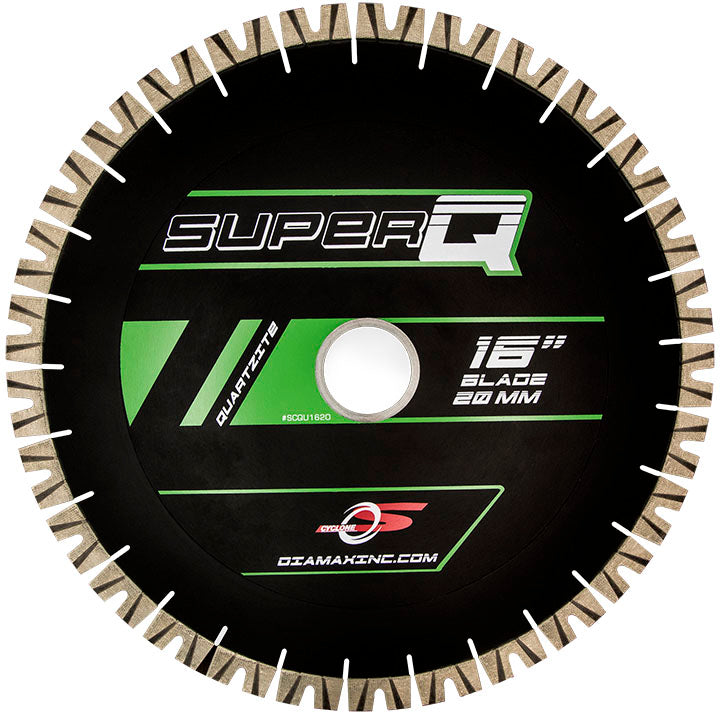

SCQU1620

ITEM #: SCQU1620
SIZE: 16″
SEGMENT: 20 mm
ARBOR: 50/60 mm
BUSHING #: BSH50602
RPM: 1,750
Suggested Feed Rate
Straight: 118″/min
Miter: 74″/min

SCQU1820

ITEM #: SCQU1820
SIZE: 18″
SEGMENT: 20 mm
ARBOR: 50/60 mm
BUSHING #: BSH50602
RPM: 1,700
Suggested Feed Rate
Straight: 118″/min
Miter: 74″/min
