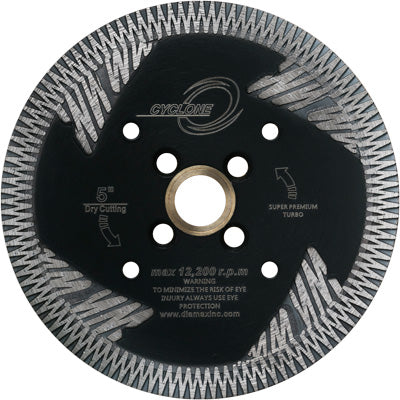

Diamax Cyclone Side Segment Turbo Blade – 5″ Diamond Blade for Granite & Engineered Stone

Professional 5″ Turbo Diamond Blade for Heavy-Duty Stone Cutting

The Diamax Cyclone Side Segment Turbo Blade – 5″ is a heavy-duty diamond cutting blade engineered for fast, controlled, and efficient cutting of dense stone materials. Designed for professional fabrication and installation environments, this blade delivers straight, smooth cuts on engineered stone, granite, quartzite, and other hard natural stone surfaces.

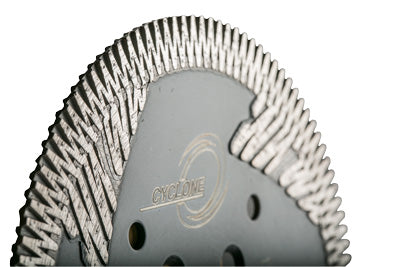

Advanced Inlaid Side Segment Design for Stability & Protection

What sets this blade apart is its inlaid side segment design, built into a thick, solid steel core. These reinforced side protection segments help reduce friction during deep cuts, minimizing binding and lowering the risk of blade warping. The added side support enhances stability when performing plunge cuts, trimming slabs, or cutting near edges—providing greater operator confidence and improved cutting accuracy.

Turbo Rim Technology for Faster, Cleaner Cuts

The turbo rim configuration enhances cutting speed while maintaining clean edge quality. The optimized segment pattern improves airflow and debris removal, helping dissipate heat during operation. This results in smoother cutting performance, reduced chipping, and extended blade life under demanding job-site or shop conditions.

Manufactured with a premium diamond bond matrix, the Cyclone Side Segment Turbo Blade is built to withstand heavy-duty use while maintaining consistent cutting efficiency.

Wet or Dry Cutting Flexibility

Suitable for both wet and dry cutting applications, this blade offers flexibility depending on job requirements:

• Wet Cutting: Extends blade life, reduces dust, and controls heat.

• Dry Cutting: Ideal for quick adjustments and mobile job-site environments.

The 5″ diameter is compatible with most standard angle grinders and handheld saws, making it a versatile solution for countertop fabrication, slab trimming, and on-site stone adjustments.

Key Features & Benefits

5″ Turbo Diamond Blade for Professional Use

Engineered specifically for fabrication shops, contractors, and installers working with dense stone materials.

Inlaid Side Segments

Provides added stability, reduced friction, and improved safety during deep and edge cuts.

Thick Solid Steel Core

Helps prevent binding and warping while maintaining straight, accurate cuts.

Fast, Smooth Cutting Performance

Delivers clean results on granite, quartzite, and engineered stone with reduced chipping.

Designed for Straight & Plunge Cuts

Ideal for slab trimming, plunge cutting, and precision stone fabrication work.

Multi-Arbor Compatibility

Fits standard arbor sizes with supplied bushings:

• 7/8″

• 5/8″

• 20 mm

Technical Specifications

Product Details

Product Name

Cyclone Side Segment Turbo Blade

SKU

SSTB5P

Diameter

5″ (127 mm)

Arbor / Bore

7/8″ – 5/8″ – 20 mm

Max RPM

12,200

Use

Wet or Dry

Materials Cut

Engineered stone, granite, quartzite

Compatible Tools

Angle grinder, hand saw

Available Sizes in the Cyclone Side Segment Series

5″ – SSTB5P

• Arbor: 7/8″ – 5/8″ – 20 mm

• Bushing #: BS57820S

• Max RPM: 12,200

6″ – SSTB6P

• Arbor: 7/8″ – 5/8″ – 20 mm

• Bushing #: BS57820S

• Max RPM: 10,185

7″ – SSTB7P

• Arbor: 5/8″ + DKO

• Bushing #: BS57820S

• Max RPM: 8,730
