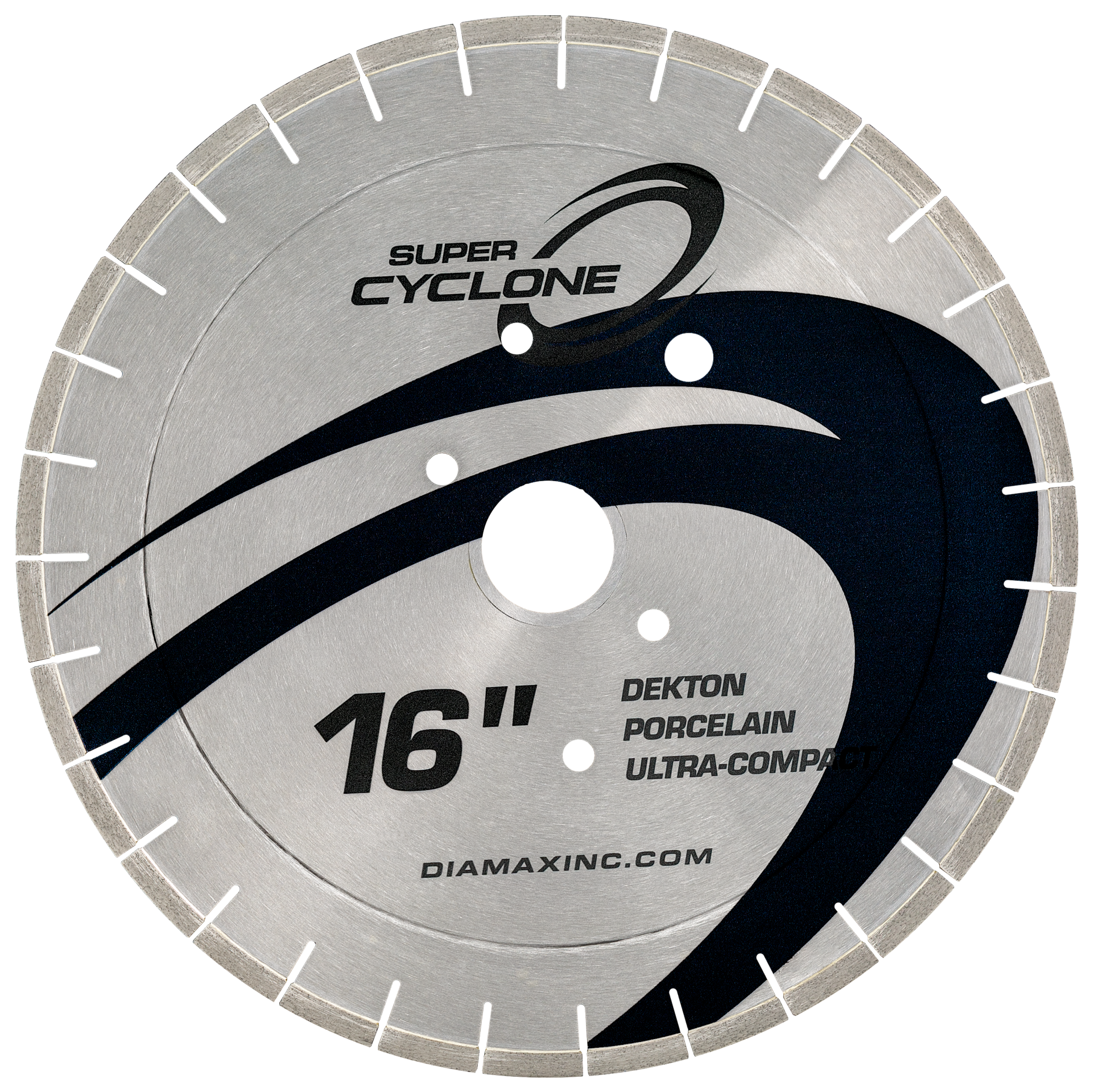

Diamax Super Cyclone 14″–16″ Porcelain Blade

Professional-Grade Diamond Blade for Ultra-Compact Surfaces

The Diamax Super Cyclone 14″–16″ Porcelain Blade is a premium, professional-grade segmented diamond saw blade engineered for high-performance wet cutting of ultra-compact surfacing materials, including porcelain, Dekton, Neolith, and similar engineered stone products.

Designed for use with bridge saws in fabrication shops, this blade delivers precise, efficient, and clean cuts while maintaining exceptional durability and cutting consistency.

Engineered for Superior Cutting Performance

Constructed with premium diamond segments and a reinforced steel core, the Super Cyclone Porcelain Blade is optimized to handle the hardness and density of ultra-compact surfaces, providing superior performance over standard blades.

Its segmented design promotes:

• Effective water cooling

• Efficient debris removal

• Reduced heat buildup

• Extended blade life

The result is smoother, more accurate cuts with minimal chipping — ideal for high-end countertops, wall panels, and detailed fabrication work.

Versatile for Straight and Miter Cuts

The blade excels in both:

Straight-Line Cutting

Mitered Cutting

Its robust construction ensures stability and precision during repetitive cutting operations, allowing fabricators to achieve consistent, professional-grade results across multiple projects.

Wet Cutting Optimization

Engineered exclusively for wet cutting, the Super Cyclone Porcelain Blade:

• Minimizes dust

• Preserves segment integrity

• Enhances cutting performance

• Produces clean edges and superior surface finishes

It is a reliable tool for professional stone fabricators, countertop shops, and tile installers who demand speed, accuracy, and long-lasting performance in high-volume or precision applications.

Key Features

Professional Diamond Construction

High-quality diamond segments engineered for precision and long life when cutting ultra-compact and porcelain materials.

Thinner Segment Design

Approximately 15% thinner segments help achieve faster, cleaner cuts with reduced material waste and improved finish quality.

Reinforced Core

Offers stability and durability during demanding cutting jobs, with reliable performance on hard materials.

Wet Cutting Only

Designed for use with water feed to control heat, reduce dust, and extend blade life.

Broad Machine Compatibility

Arbor size and design fit many bridge saws using 50/60 mm arbor standards.

Specifications

Blade Specifications

• Blade Diameter: 14″–16″ (≈406 mm)

• Segment Height: ~10 mm

• Arbor / Bore: 50 / 60 mm

• Intended Use: Wet cutting of porcelain & ultra-compact surfaces

• Max RPM: ~2200–2400 RPM (typical for this size)

• Materials Cut: Dekton, Neolith, Laminam, porcelain, ultra-compact stone

Product Variants & Performance Data

CUSU14 – 14″ Porcelain Blade

• Segment Height: 10 mm

• Arbor: 50/60 mm

• Max RPM: 2400

• Straight Cutting Speed: 80″ / min

• Miter Cutting Speed: 48″ / min

CUSU16 – 16″ Porcelain Blade

• Segment Height: 10 mm

• Arbor: 50/60 mm

• Max RPM: 2400

• Straight Cutting Speed: 80″ / min

• Miter Cutting Speed: 48″ / min
